Attaching tools and Expertise
Suturex & Renodex offers a complete range of attaching dies for drilled end needles. Our team of experts is also at your service to inform you and to answer your specific requests.
Standard features
Our dies are available in pairs only. Both parts are absolutely identical but mirror images of each other.
They are manufactured from a material called tungsten carbide which is the hardest steel in existence.

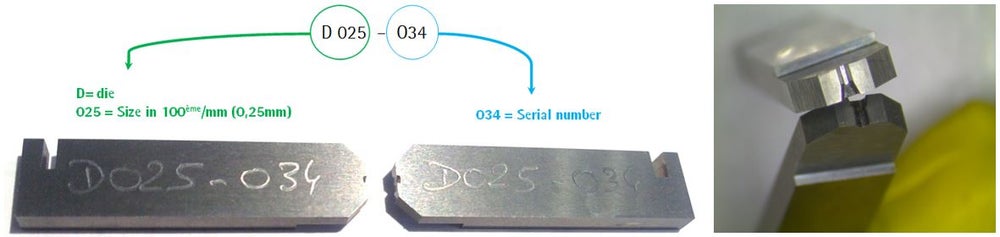

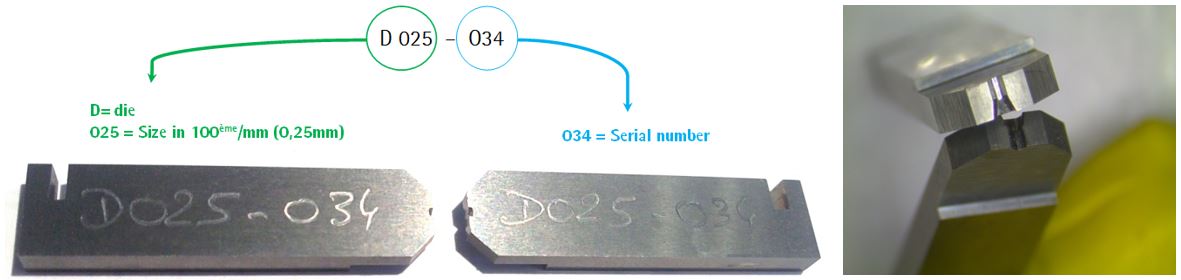

Our dies are all marked as follows :
Recommended die according to the needle diameter and range.
| ENOVA® Needle wire diameter | Suture thread type | ||
Mono | Multi | ||
28 | (0,011'') | D 025 |
|
33 | (0,013'') | D 028 |
|
38 | (0,015'') | D 033 |
|
43 | (0,017'') | D 038 | D 036 |
48 | (0,018'') | D 040 |
|
53 | (0,021'') | D 047 | D 046 |
58 | (0,023'') | D 050 |
|
63 | (0,025'') | D 054 | D 053 |
68 | (0,027'') | D 056 | |
73 | (0,029'') | D 064 | |
78 | (0,031’’) | D 068 | D 066 |
83 | (0,032'') | D 071 |
|
88 | (0,035'') | D 075 | |
98 | (0,038'') | D 085 | D 083 |
110 | (0,043'') | D 097 | |
112 | (0,044'') | D 101 / D 103 | |
128 | (0,050'') | D 115 | |
138 | (0,054'') | D 125 | |
148 | (0,058'') | D 130 | |
158 | (0,062'') | D 136 | D 134 |
We are at your disposal to evaluate any special request (dies, tools, spare parts).
We also offer technical assistance and attaching expertise. Feel free to contact us.
